Product No. ANSPORN 3365AG
  Product Name Concealed Duct Type Urinal Flush Valve
  Functions and Features
  • Single press activation via 18mm diameter push button.
  • Adjustable flush volume (2.0 - 3.5L)
  • Consistant flush volume irrespective of water pressure.
  • Pressure range from 0.7-7bar dynamic pressure.

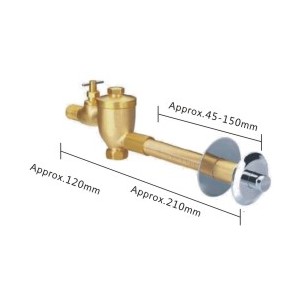

  • Concealed duct type for solid wall 45-150mm thick.

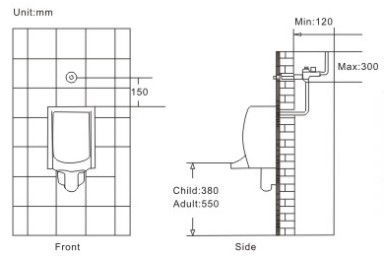

  Explanation of Installation
