Product No.	H002

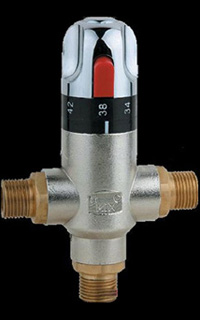

		Product Name	Thermostatic Valve
		Parameters	DN15: Working pressure: 0.03-1MPa Working pressure: 0.1-0.5MPa Cold water temperature: 5-29 Hot water temperature: 50-80 The maximum hot water temperature: 95 Temperature accuracy: + -2 Outlet flow rate (0.1MPa): 1 Maximum hot and cold water pressure: 8:1 May bring the number of sprinklers: 1-2	DN20: Working pressure: 0.03-1MPa Working pressure: 0.1-0.5MPa Cold water temperature: 5-29 Hot water temperature: 50-80 The maximum hot water temperature: 85 Temperature accuracy: + -2 Outlet flow rate (0.1MPa pm): 2.1 Maximum hot and cold water pressure: 8:1 May bring the number of sprinklers: 3-6	DN50: Working pressure: 0.03-1MPa Working pressure: 0.1-0.5MPa Cold water temperature: 5-29 Hot water temperature: 50-80 The maximum hot water temperature: 95 Temperature accuracy: + -0.2 Outlet flow rate (0.1MPa time): 15 Maximum hot and cold water pressure: 8:1 May bring the number of sprinklers: 30-40
		Functions and Features	Infrared induction, water outlet automatic turn-on/turn-off, water saving, convenient, sanitary, and effectively avoiding cross infection of bacteria. he product is controlled by a micro-computer to adjust the best distance of induction according to the color and shape of the washing basin. The specially incorporated filter net can effectively clean the granular impurities in the water, such as sand and gravel. When used continuously for more than one minute, the induction will automatically stop the water supply to avoid the waste of water resource due to the long-time stay of foreign body within the induction area. The DC model uses four alkaline batteries. Presuming the product is used 300 times a day, the batteries need not to be replaced within two years.
