Product No. HF-S012
  Product Name Automatic Faucet
  • Power supply: DC 6V(four AAA alkaline batteries)
  • Static power consumption: 0.5mW(AC6V)
  • When four AAA alkaline batteries are used, and presuming that the product is used for 300 times a day, the power supply can last for 2 years.
  • Inductive range: 8cm-20cm automatic distance measurement
  • Suitable water pressure: 0.02-0.8Mpa
  • Preferable design water pressure: 0.1-0.3Mpa
  • Ambient temperature of operation: 1-55
  • Water inlet/outlet pipe caliber: G(1/2)(DN15)
  Functions and Features
  • Infrared induction, water outlet automatic turn-on/turn-off, water saving, convenient, sanitary, and effectively avoiding cross infection of bacteria.
  • he product is controlled by a micro-computer to adjust the best distance of induction according to the color and shape of the washing basin.
  • The specially incorporated filter net can effectively clean the granular impurities in the water, such as sand and gravel.
  • When used continuously for more than one minute, the induction will automatically stop the water supply to avoid the waste of water resource due to the long-time stay of foreign body within the induction area.
  • The DC model uses four alkaline batteries. Presuming the product is used 300 times a day, the batteries need not to be replaced within two years.

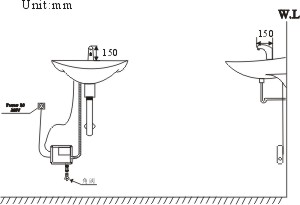

  Explanation of Installation
