Product No. HF-X006

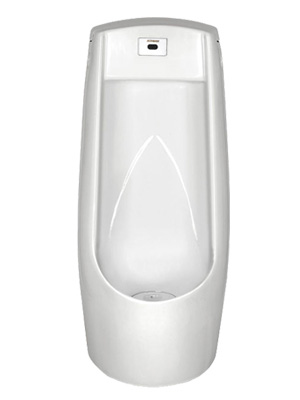

  Product Name Inductive Urinal Flusher
  Parameters
  • Power supply: selective according to different demands: DC 6V (four AA alkaline batteries) or AC 220V (AC/DC power supply selectable)
  • Static power consumption: 0.5W(DC), 3W(AC)
  • Flushing time: flushing for 2 seconds after induction, and lasting for 4 seconds more when people leave
  • Suitable water pressure: 0.1-0.6Mpa
  • Inductive range: automatic distance measurement
  • Water inlet/outlet pipe caliber: G(1/2)(DN15)
  • Induction confirmation time: 2 seconds (not initiated within 2 seconds)
  • Suitable ambient temperature: 1-55
  • Water flow: 0.12(L/S)
  Functions and Features
  • Infrared induction, water outlet automatic turn-on/turn-off, water saving, convenient, sanitary, and effectively avoiding cross infection of bacteria
  • The product is controlled by a micro-computer to automatically adjust the frequency of use, time length of each time of use and the flushing time, and effectively save the water consumption.
  • In places with high frequency of use, the water flushing volume of each time of use is 1.2-3L, and is 2-4L in places with low frequency of use (the water injection pressure is 0.3-0.6Mpa).
  • There are built-in water volume adjusting valve and filtering net, so non-professional persons can also conduct water volume adjustment and cleaning of filtering net.
  • When the toilet has not been used for a long time, the flusher will conduct an automatic flushing for every 24 hours, in order to prevent the residual water in the water trap from drying, and prevent the stench to flow back.
  • Four AA alkaline batteries are used. Presuming the product is used for 300 times a day, the batteries need not to be replaced in two years.

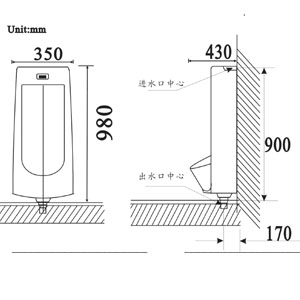

  Explanation of Installation
