Product No. HF-Y002

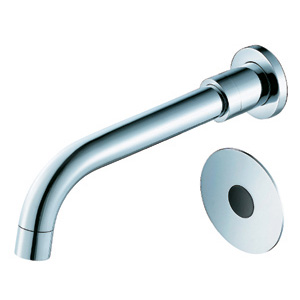

  Product Name Hospital Hand Washer
  Parameters
  • Power supply: DC 6V(four AAA alkaline batteries)
  • Static power consumption: 0.5mW(AC6V)
  • When four AAA alkaline batteries are used, and presuming that the product is used for 300 times a day, the power supply can last for 2 years.
  • Inductive range: 8cm-20cm automatic distance measurement
  • Suitable water pressure: 0.02-0.8Mpa
  • Preferable design water pressure: 0.1-0.3Mpa
  • Ambient temperature of operation: 1-55
  • Water inlet/outlet pipe caliber: G(1/2)(DN15)
  Functions and Features
  • The infrared induction, the human body are in the induction scope are water leakage, exempts the switch valve troublesomeness.
  • The main engine uses the microcomputer control, all flush the water movement to complete automatically by the machine, avoids the bacterium infection effectively, compared to manual showers saves water 30%.
  • Response time control.
  • Uses 4AA alkaline battery, every day uses 300 times, in two years do not need to replace the battery.
  • The Tibet wall type design, suits the standard wall the installment, manifests the decoration and the environment integration.
  • Suits in the hospital operating room and in the decoration request quite high place uses.

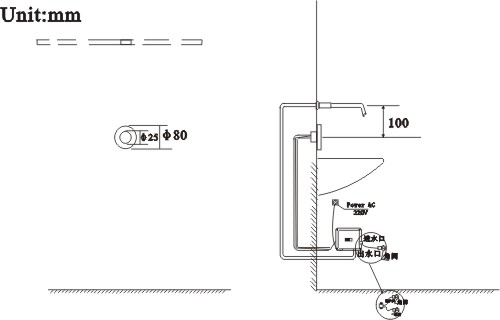

  Explanation of Installation
